Wall Fixings for Shelves and TV Units UK: What Your Wall Is Actually Holding

A wall fixing is supplied with almost every bookcase in this range and with almost none of the shelves and TV units that cannot stand up without one. Across 342 live products in the 10Grains bookcase, TV unit and storage ranges, 152 freestanding units state that an anti-tip wall restraint is included in the box. Of the 43 units that are designed to hang on a wall, exactly two say any fixing is included at all. The furniture that would stand up perfectly well on its own arrives with a strap. The furniture whose only support is four screws arrives with a manual.

That is a pattern across three whole collections, not a quirk of one listing, and it points at the real problem with buying anything that goes on a wall: the specification describes the furniture and says nothing about the thing holding it up. Our bookcase guide covers what a shelf will carry and our load-rating guide covers what a maximum load figure means. This is the other half of the question. Once the shelf is strong enough, something still has to keep it on the wall.

Which units in the range actually need the wall?

We pulled every product in Bookcases and Shelves (226), TV Units and Stands (84) and Home Storage and Organisation (32) and read all 342 descriptions. Forty-three of them are wall-mounted: floating shelves, wall display cabinets, and the floating TV units that have become the default way to get a media setup off the floor. Twenty-three come from the bookcase range and twenty from the TV range. The other 299 stand on the floor.

Then we counted what each group says about fixing to a wall. The result is an inversion, and once you see it you cannot unsee it.

The two exceptions prove the point rather than soften it. Both are the same product in two colourways: a 93 cm wall shelf with drawers, 15 cm deep, rated 8 kg, among the lightest wall-mounted items we sell and the only one that ships with fixing kits. Seven further listings say assembly and wall fixing required, which says a fixing is needed without saying whether one is enclosed. One itemises the box: one wall shelf, one manual.

Why does the furniture that stands up by itself get the fixing?

Because that fixing is doing a different and much easier job. An anti-tip strap stops a tall unit falling forwards when a drawer is open or a child climbs it; it carries almost no weight, it just stops rotation. The storage furniture standard EN 14749 expects a unit either to resist toppling by design or to be fastened to a wall, and it tests the strength of that attachment. The strap is not an accessory; it is part of how the unit meets the standard.

That explains why 152 of our 299 freestanding units have one, and why 80 of those 152 stand over 150 cm tall. It does not explain the other side. A wall-mounted unit has nothing holding it up at all except its fixings. Every kilogram you put on it is carried by the wall. The job is harder by an order of magnitude, and the box is emptier.

There is a second split inside the freestanding group that is worth flagging on its own. All 152 restraints are in the bookcase range. None of the 64 freestanding TV units and none of the 32 freestanding storage units mentions an anti-tip restraint. The one category where a toppling unit brings a television down with it is the category with nothing in the box to stop it.

How much is the wall actually holding? The Wall Ledger

The published load tells you what the shelf will take. It does not tell you what the wall will take, and the gap between those two numbers is bigger than most people expect. Three entries decide it, and we will call them the Wall Ledger.

Weight is the published load plus the unit's own mass. Reach is how far that weight sits out from the wall, which is the unit's depth. Grip is what the fixing and the wall can actually hold. You need all three, and the catalogue gives you one and a half.

Weight is the first problem. Twenty-four of the 43 wall-mounted units publish an overall load, from 8 kg to 45 kg with a median of 20 kg, and twenty publish a per-shelf figure. Three publish none at all, including a 150 cm wall shelf sold as part of a media set. The bigger gap is quieter: not one of the 342 products publishes its own weight. A particleboard cabinet 80 cm wide and 83 cm tall is not light, and the wall carries it as well as its contents. The one number you need to size a fixing properly is absent from every listing in all three collections.

Reach is where it gets interesting, because the catalogue does publish depth, and depth is a multiplier.

Why does depth matter more than weight?

A load on a wall-mounted unit does not hang straight down the wall. It hangs out from it. That creates a rotation the top fixings have to resist by pulling against the wall rather than pressing down into it, and pulling out is the direction every wall fixing is weakest in. The further out the load sits, and the shorter the unit is from top fixing to bottom fixing, the more of the load becomes outward pull.

From published figures alone you can estimate it. Take the load, multiply by half the depth, divide by the height. We will call the result the pull: roughly the tension the top fixings have to resist, in kilograms. It is deliberately generous, because it assumes fixings right at the top and bottom of the unit, and real fixing patterns sit further in. Treat it the way you should treat a published load figure: as the best case.

Across the 40 wall-mounted units where load, depth and height are all published, the pull runs from 0.6 kg to 33.8 kg, a fifty-nine-fold spread, with a median of 4.7 kg. Sort them by depth and the range splits almost perfectly in two.

The shallow group and the deep group carry loads that differ by a factor of about two and a third. The work their fixings do differs by a factor of twenty-four. Sixteen of the 40 put more than 10 kg of outward pull on their fixings, which is past what the plastic self-drive plugs in a typical flat-pack bag will manage, and five put more than 20 kg.

What does an identical 30 kg rating hide?

Here is the part a buyer can check in four clicks. Four products in the range publish an identical maximum load of 30 kg. If the rating were the number that mattered, they would be interchangeable. They are not.

One is a four-tier wall bookshelf, 12 cm deep and 113 cm tall. Its pull is about 1.6 kg. The others are floating TV units, 30 and 35 cm deep but only 30 cm tall. Their pull is 15.0 kg and 17.5 kg. One identical published figure, and an eleven-fold spread in what the wall is asked to do. The cheapest of the four is also the easiest to hang; the dearest is the hardest. Nothing in the rating, the title or the price points at it.

That is not a one-off. Ten products share a published 8 kg rating and their pull runs from 0.6 kg to 6.0 kg, a nine-and-a-half-fold spread; four share a 10 kg rating and spread eight-fold. A shared load figure says almost nothing about the installation. Load and pull correlate at 0.90 across the set, which sounds reassuring until you compare them pairwise: in 17 per cent of comparisons, the unit with the higher published load puts less pull on the wall than the unit with the lower one.

Which units pull hardest on the wall?

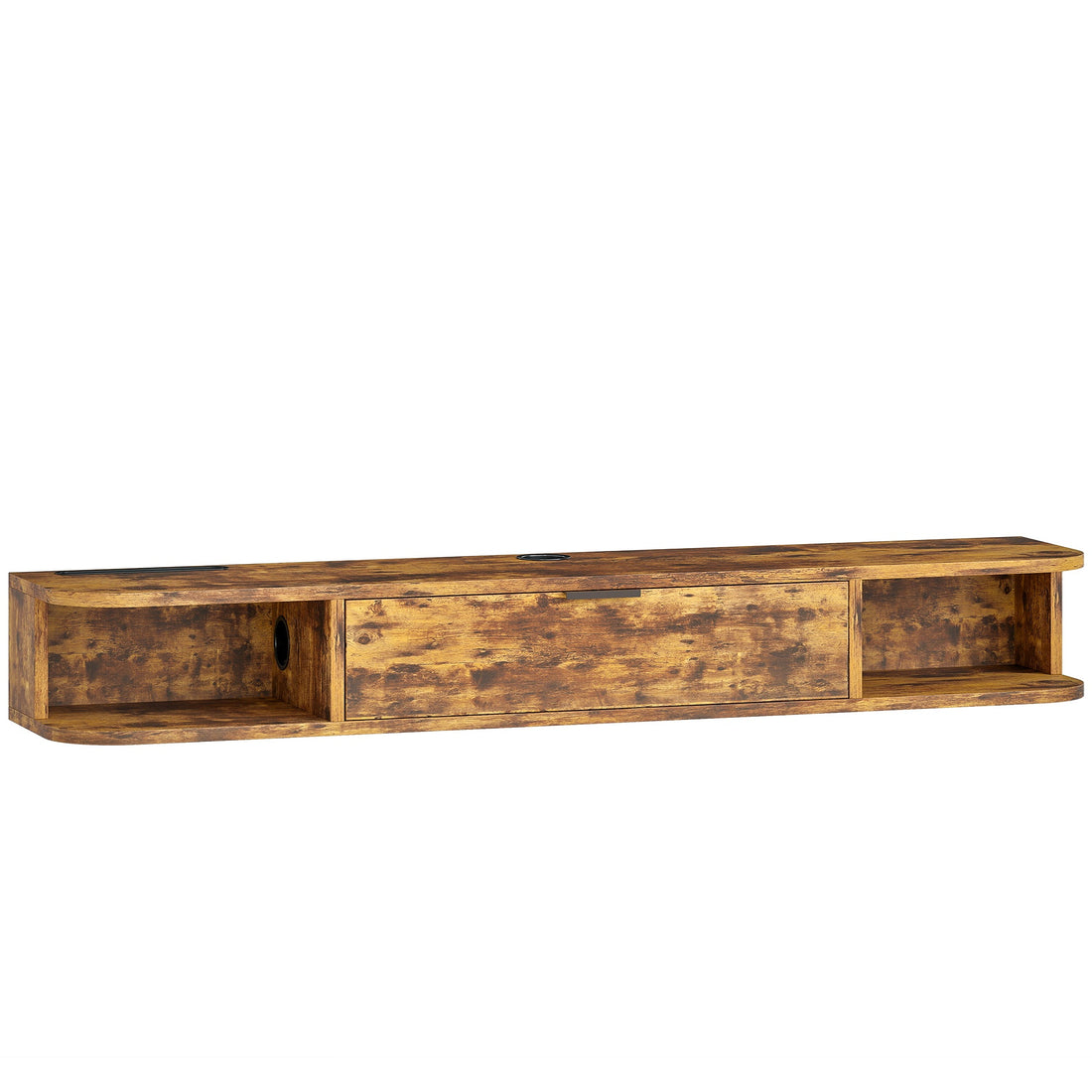

These are the deep, short units: mostly floating media furniture, 24 to 40 cm deep and 16 to 30 cm tall, and the ones where the wall decides whether the purchase works. Each card shows the published load and depth alongside the pull they imply.

Note that the two hardest-working units here, at 33.8 kg of pull each, are also two of the cheapest on the row. And the 105 cm floating TV shelf carries the same 20 kg rating as the 140 cm fluted-door unit while putting 47 per cent more pull on the wall, purely because it is 5 cm deeper and 4 cm shorter.

Which ones barely trouble the wall?

The shallow wall display cabinets are the opposite case, and they are routinely dismissed as the lightweight option when they are in fact the easy install. At 9.5 cm deep and 60 to 83 cm tall, they put well under a kilogram of pull on their fixings even when every shelf is full.

On a wall you are unsure about, this is the shape to reach for: shallow, tall, and fixed at two heights well apart. A tall shallow cabinet is kinder to plasterboard than a short deep shelf carrying a third of the weight.

And the middle of the range?

Between the two extremes sit the units most people are actually choosing between, from 2.5 kg to 16.7 kg of pull. This row includes the only two wall-mounted products in the range that supply their own fixing kits.

What will a plasterboard wall really hold?

Now the Grip entry, where two UK sources converge. Homebuilding and Renovating puts metal hollow-wall anchors and spring toggles at around 30 kg each in 12.5 mm plasterboard, and rates self-drive fixings at up to 20 kg while noting they manage under 10 kg in practice. UK Construction Blog lands independently in the same place: roughly 30 kg on a single plasterboard fixing, up to about 50 kg shared across several. Heavy-duty anchors are rated into the hundreds of kilograms, but that is a correctly installed anchor in sound board, not the bag that came with the furniture.

Line that up against the table and the shape of the problem is clear enough.

The honest conclusion is not that floating TV units are unsafe. It is that the published rating is the wrong number to shop on. Two units can carry the same 30 kg and ask completely different things of your wall, and the listing that tells you the load will not tell you which one you have bought.

Where are the studs, and will the unit reach them?

Everything above assumes the fixing is in plasterboard. Fixing into the timber or metal stud behind it, or into a noggin, is a different and much stronger proposition. The question is whether your unit can reach one.

The LABC Warranty technical manual puts timber studs at a maximum of 600 mm centres, and metal studs at 600 mm maximum centres too, with 450 mm maximum where thinner 9.5 mm board is used. Measure the 43 wall-mounted units against that and they divide cleanly:

Sixteen of the 43 are 120 cm or wider, so at 600 mm centres they are certain to cross at least two studs. Twenty-five, between 60 and 119 cm, are certain to cross one but not two. Two are under 60 cm wide and can miss every stud in the wall. Of the sixteen units pulling above 10 kg, fourteen are wide enough to guarantee two studs; the two that are not are the 105 cm floating TV shelves, at 16.7 kg each.

The same manual explains why this is not always solvable on the day: where partitions are to support heavy items such as radiators or kitchen cupboards, additional noggins should be provided within the stud partition to accommodate fixings. That decision is made when the wall is built, and nothing you buy afterwards will put a noggin behind the plaster.

The one-minute check before you order

Four steps, in this order, and the last one is the one almost everybody skips.

One: name the wall. Knock it. A hollow sound and a slight give is plasterboard on studs; a dead thud is masonry. On masonry an 8 mm plug and screw into brick or block will out-perform anything on this page. On plasterboard, read on.

Two: find the fixing points. Use an electronic stud detector, then confirm with a thin bradawl before you commit to a hole. Mark the stud centres and see whether they line up with the unit's fixing points, not just with its overall width.

Three: read the depth, not only the width. Width tells you whether it fits the wall. Depth tells you how hard it pulls on the wall. Load times half the depth, divided by height, gives you the pull. Anything over about 10 kg wants a proper cavity anchor at minimum, and preferably a stud.

Four: assume the fixings are not included, and budget for them. On this evidence that assumption is right 41 times out of 43. A set of decent metal cavity anchors costs very little against the furniture, and it is the only part of the installation that is actually holding your television up.

Related reading: the bookcase guide for what a shelf itself will carry, the load rating guide for what a maximum load figure means, and the TV stand size guide for sizing a unit to a screen.

Freestanding instead? Use the strap that came with it

These eight all ship with an anti-tip restraint, and all eight stand between 158 and 188 cm tall. The strap takes a couple of minutes and one screw into the wall, and it is doing the job the standard expects of it.

Frequently asked questions

Sources and method. Product figures from all 342 live listings in Bookcases and Shelves, TV Units and Stands, and Home Storage and Organisation, read on 1 October 2026; out-of-stock items are excluded from the product rows above. Pull is derived from each listing's own published load, depth and height. Fixing capacities: Homebuilding and Renovating, best plasterboard fixings and UK Construction Blog, plasterboard fixings. Stud spacing and noggin requirements: LABC Warranty Technical Manual v10, Section 7, Internal Walls. Storage furniture stability and wall-attachment testing: SATRA, the testing of storage furniture on EN 14749. Last updated 1 October 2026.
